HX Series
- HX – Standard open blower type with PSC motor
- HXX – High Efficiency with ECM
- HXS – Standard 7mm with PSC motor
- HXSX – 7mm with ECM motor
Horizontal Recessed
Cased and Uncased Available
1.5 – 3 Tons Cooling
0 – 10 kW Electric Heat
Compatible with R-32 and R-454B
Compatible with R-410A for Servicing Existing Equipment Only

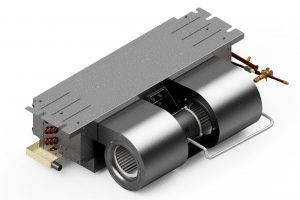

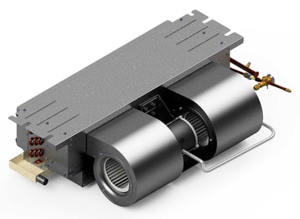

All HX fan coils include a 240/24V transformer and are completely prewired with 0 to 10 kW of electric heat. A sloped drain pan allows positive drainage of condensate. The base HX fan coil is an open blower type (non-enclosed) fan coil. It is also available with either a field or factory installed enclosure, with both options of a louvered or solid ceiling panel.
The HX series is compatible with most split system condensing units and heat pumps (heat pumps with electric heat require field added kit).
Standard Features
• High Efficiency ECM motor for HXX and HXS*X models.
• Drain pan has 3/4” NPT primary and secondary (overflow) fittings 240V motor, 24V controls.
• Insulated and coated galvanized steel drain pan is sloped for proper drainage.
• Cabinet air leakage is no more than 2% when tested in accordance with ASHRAE 193 for cased units.
